A. Hydraulic Fittings

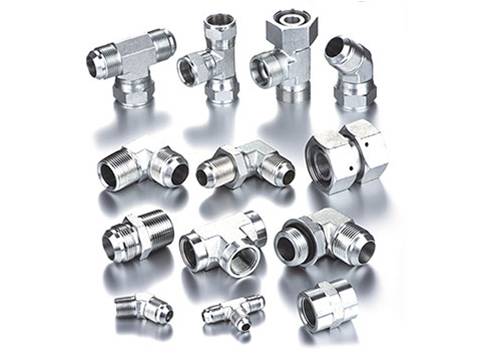

i. Hydraulic Fitting
Product Type :
Male stud coupling, Hose adaptor, Banjo coupling, Standpipe Swivel elbow, Straight coupling, Equal Tee, Hex head plug, Socket head plug
Material :
Carbon Steel / SS
Thread Type :
BSP / NPT / Metric
Size Range :
1/8" to 1" and M10 to M16
Pressure Rating :
Up to 350 bar
Application :
Hydraulic & Pneumatic, Hose Connection, Port Closing and Sealing etc.

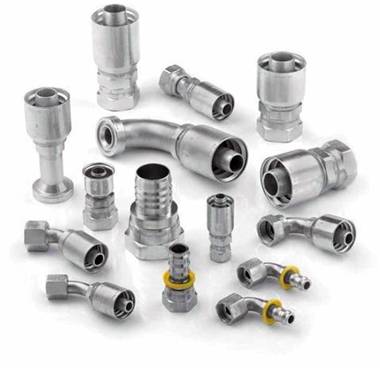

ii. Hydraulic Crimp & Fittings
Product Type :
Crimp Ferrules (1PC / 2PC), Straight Fittings, Elbow Fittings (45° / 90°), Male Stud / Hose Adaptors.
Material :
Carbon Steel / SS
Thread Type :
BSP / NPT / Metric
Size Range :
1/8" to 1" and M10 to M16
Pressure Rating :
Up to 350 bar
Application :
Hose Assembly, Industrial & Mobile Hydraulics

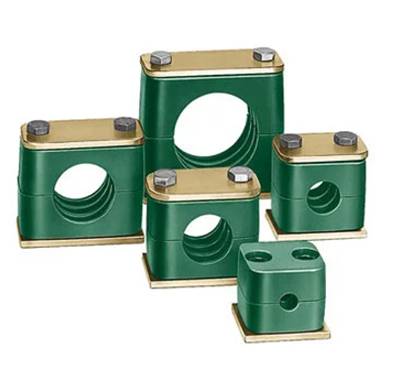

iii. Pipe Clamps
Product Type :
Standard Pipe Clamp, Heavy Series Clamp, Twin Pipe Clamp, Rail Mounted Clamp, Tube Clamp Assembly
Material :
Polypropylene / Steel
Clamp Type :
Single line, Double Line
Size Range :
6 mm to 38 mm
Pressure Rating :
Light Duty, Heavy Duty
Application :
Parallel Pipe Routing, Industrial Hydraulic Systems.

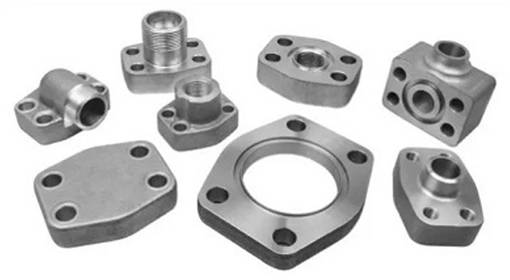

iv. SAE Flanges
Product Type :
Split and Monoblock Forged Flanges, Buttweld Swivel Flanges, Buttweld Solid Flanges, Blind Flanges, Socket Weld Flanges
Material :
Carbon Steel / SS
Size Range :
1/2" to 3"
Pressure Rating :
Up to 250 bar
Application :
Hydraulic Line Connection, Port Closing and Sealing.
B. Hose Assemblies
i. R1AT / 1SN Rubber Hose
Black color, synthetic Rubber Resistant to abrasion & weather, oil & ozone, single steel wire braid.
Application :
Medium Pressure Hydraulic Lines 10 to 250 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems
Temperature Range :
Continuous: -40°C to +100°C
ii. R2AT / 2SN Rubber Hose
Black color, synthetic Rubber Resistant to abrasion & weather, oil & ozone, single steel wire braid.
Application :
High Pressure Hydraulic Lines 50 to 415 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems
Temperature Range :
Continuous: -40°C to +100°C
iii. R12 High Pressure Hose
Black color, synthetic Rubber Resistant to abrasion & weather, oil & ozone, four high Tensile steel wire spirals.
Application :
Heavy duty high temperature medium pressure hydraulic lines 175 to 280 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving, Material handling equipment and machineries / systems
Temperature Range :
Continuous: -40°C to +121°C
iv. R13 High Pressure Hose
Black color, synthetic Rubber Resistant to abrasion & weather, oil & ozone, four or six high Tensile steel wire spirals.
Application :
350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems
Temperature Range :
Continuous: -40°C to +121°C
v. R15 High Pressure Hose
Black color, synthetic Rubber Resistant to abrasion & weather, oil & ozone, four or six high Tensile steel wire spirals.
Application :
420 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems
Temperature Range :
Continuous: -40°C to +121°C

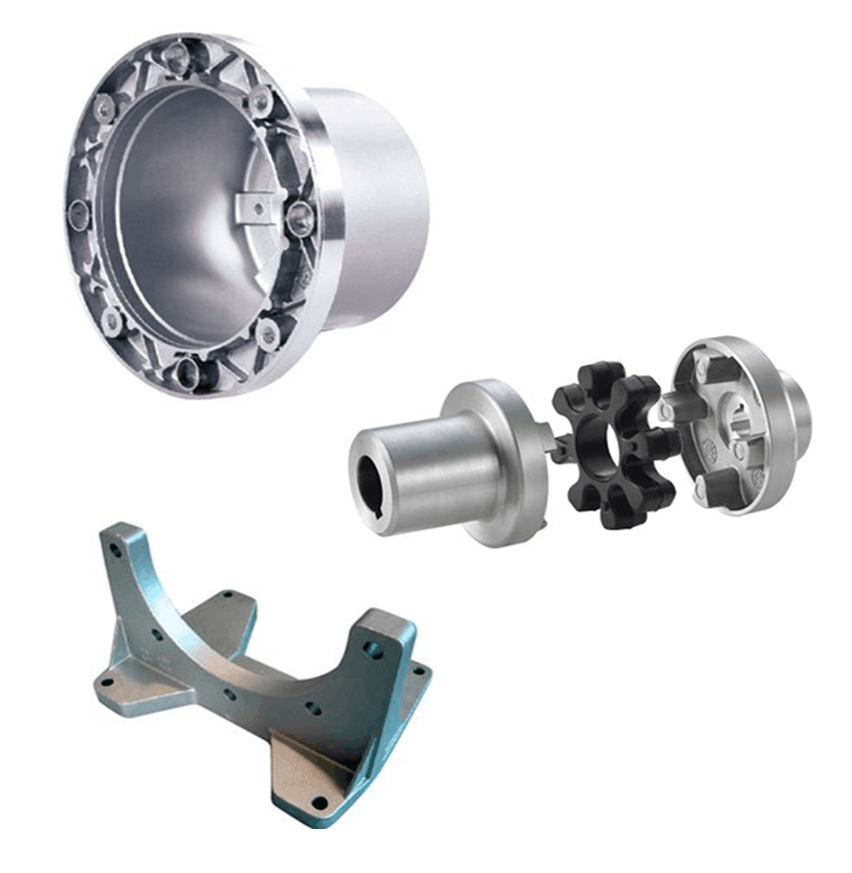

C. Bell Housing & Coupling
i. Bell Housing & Coupling
Product Type :
Bell Housing, Flexible Coupling, Jaw Coupling, Gear Coupling, Aluminum Bell Housing, Cast Iron Bell Housing, Coupling Spider
Material :
Aluminum Alloy / Cast Iron / Steel
Motor Frame Compatibility :
IEC & NEMA Standard Motor Frames
Power Rating :
Suitable for Various Motor and Pump Combinations
Applications :
Hydraulic Power Packs, Industrial Machinery, SPM Machines, Automation Systems, Material Handling Equipment, Hydraulic Power Units, and Mobile Hydraulic Applications.

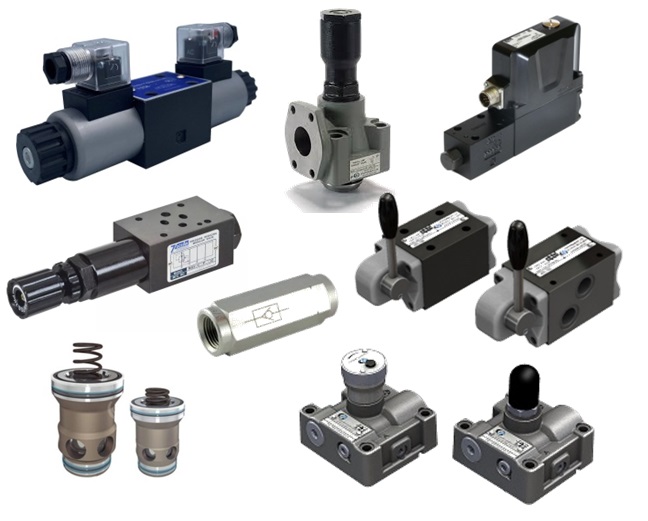

D. Hydraulic Valves
Hydraulic Valves Range
Product Type :
Direction control valve, Proportional control valves, Pressure control valves, Flow control valves, Check Valve, Cartridge valves, Prefill & Exhaust Valve
Material :
Cast Iron / Carbon Steel Body
Flow rate :
10–120 LPM
Pressure Rating :
Up to 315 bars
Application :
Cylinders, motors, power packs, Motion & speed control, Pressure protection, Hydraulic press systems, Manifold blocks

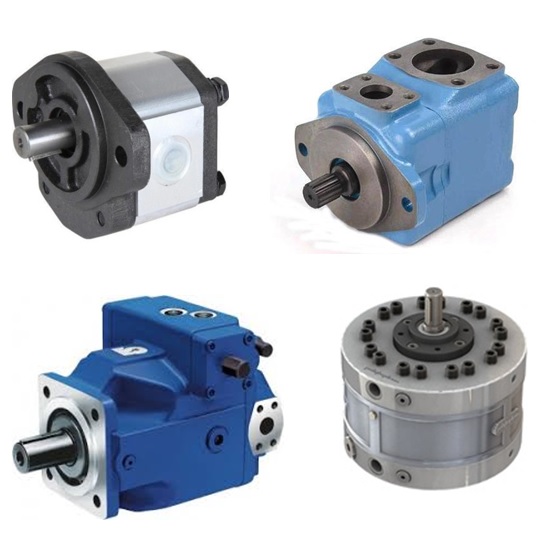

E. Hydraulic Pumps
Hydraulic Pumps Range
Product Type :
Gear Pump, Vane Pump, Radial Piston Pump, Variable (Axial) Displacement Pump, High Pressure Pump
Material :
Alloy Steel / Cast Iron
Flow rate :
5–250 LPM
Pressure Rating :
Up to 350 bar
Application :
General Industrial Use, Low Noise Applications, High Pressure Systems, Energy Efficient Systems.

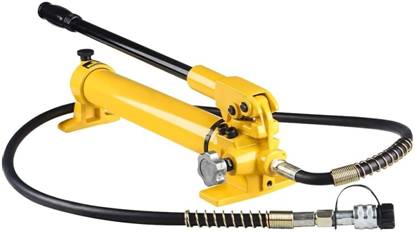

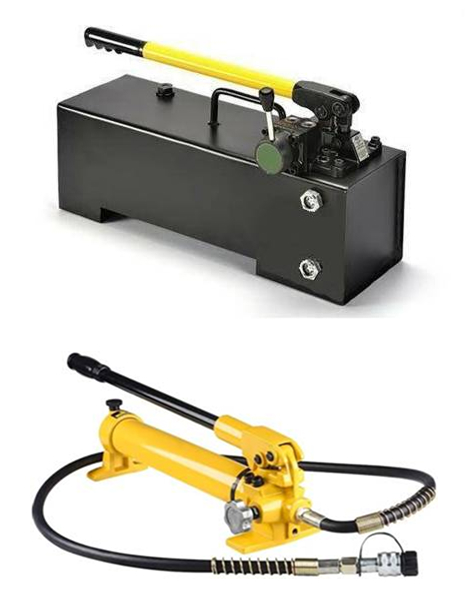

F. Hydraulic Hand Pumps (HP12, HP16)
Product Type :
Single Acting Hand Pumps, Double Acting Hand Pumps, High Pressure Hand Pumps
| Model | Max. Working Pressure (Bar) | Flow Capacity (CC/Stroke) | Oil Tank Capacity (Liters) |
|---|---|---|---|
| HP 12 | 700 | 2.8 | 1.2 |
| HP 16 | 350 | 5 | 1.2 |
| HP12-1000 | 1000 | 2.8 | 1.2 |
Applications :
Hydraulic Testing, Cylinder Operation, Lifting Equipment, Clamping Systems, Maintenance Operations, and Emergency Hydraulic Applications.
G. Hydraulic Tank Accessories
i. Filler Breather
Product Type :
Standard Filler Breather
Material :
Steel / Aluminum
Filtration :
10–40 Micron
Air Flow :
Up to 100 LPM
Connection Size :
1/2" to 2" BSP
Application :
Hydraulic Tanks, Moisture Removal

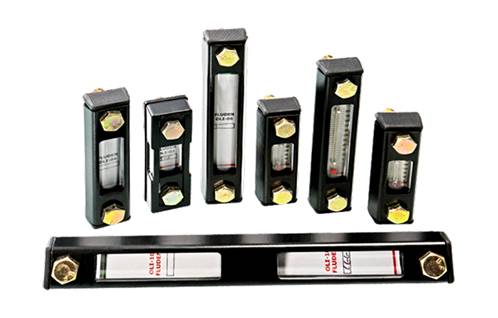

ii. Oil Level Indicator
Product Type :
Standard Filler Breather
Material :
Steel / Aluminum / Polyamide
Mounting / Size :
1/2" to 2" BSP
Temperature Range :
Up to 80°C
Application :
Hydraulic Tanks
iii. Heat Exchanger
Product Type :
Air Oil Cooler, Shell & Tube Heat Exchanger
Material :
Aluminum / Copper / Steel
Cooling Type :
Air Cooled (Fan), Water Cooled
Flow Rate :
20–500 LPM
Pressure Rating :
Up to 25 bar
Temperature Range :
20°C to 120°C
Application :
Power Packs, Industrial Systems

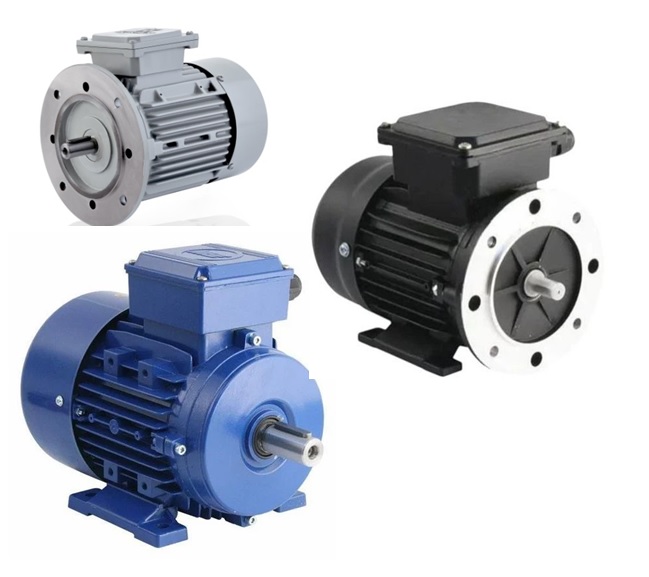

H. Electric Motors
Electric Motors Range
Product Type :
Induction Motor, Flange Mounted Motor, Foot Mounted Motor
Material :
Cast Iron / Aluminum Body
Power range :
0.5 HP to 100 HP
Speed :
1440 / 2880 RPM
Application :
Hydraulic Power Packs, Pump Mounting (Bell Housing), Base Frame Mounting

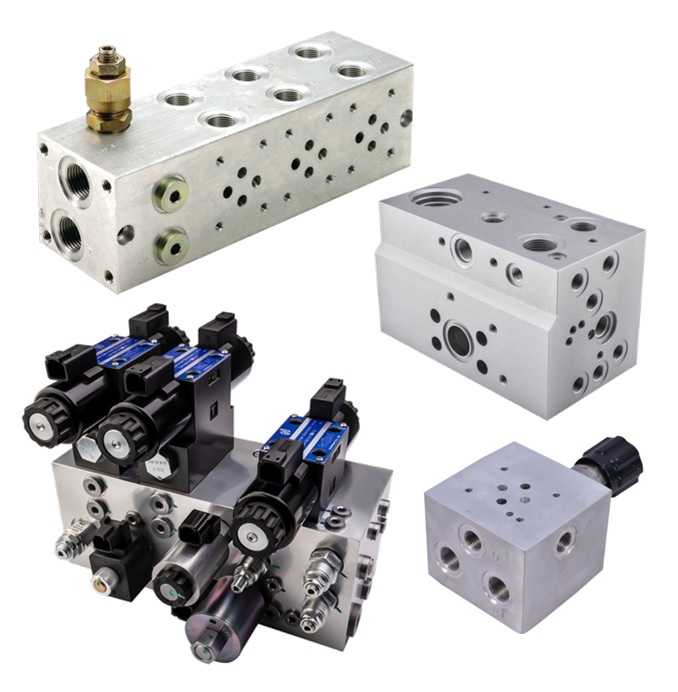

I. Hydraulic Manifold Blocks
Hydraulic Manifold Blocks Range
Product Type :
CETOP Manifold Block, Subplate Manifold, Cartridge Manifold Block, Custom Manifold Block, Hydraulic Integrated Block
Material :
Mild Steel / EN8 / EN19 / Alloy Steel
Pressure Rating :
Up to 315 bar
Flow Capacity :
10–200 LPM
Application :
Valve Mounting, Direction Control Valves, Compact Circuits, SPM & Power Packs, Complex Systems

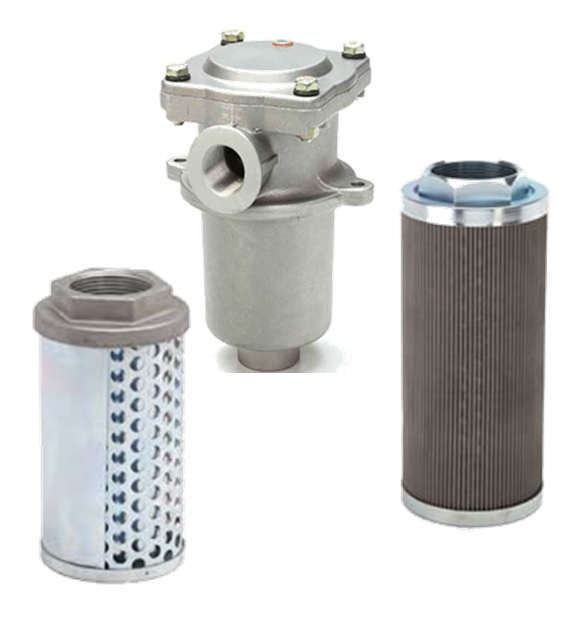

J. Hydraulic Filters
Hydraulic Filters Range
Product Type :
Return Line Filter, Pressure Line Filter, Suction Strainer
Material :
Steel Mesh / SS / Aluminum
Pressure Rating :
Up to 10 bar and Up to 210 bar
Flow Rate :
Up to 200 LPM
Application :
Pump Protection, Tank Filtration, High Pressure Line, Tank Ventilation

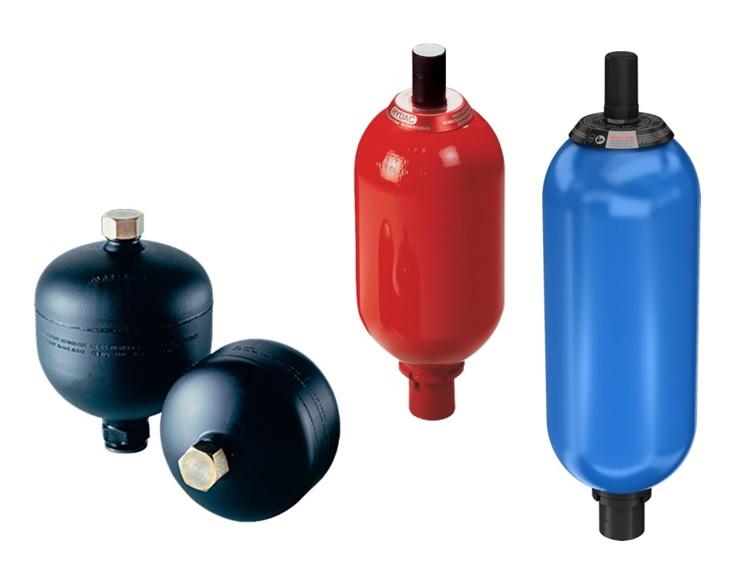

K. Hydraulic Accumulators
Hydraulic Accumulators Range
Product Type :
Bladder Accumulator, Diaphragm Accumulator
Material :
Carbon Steel / Alloy Steel / Welded Body
Pressure Rating :
Up to 350 bar
Gas Type :
Nitrogen (N₂)
Application :
Shock Absorption, Pulsation Damping, Energy Storage
