Overview

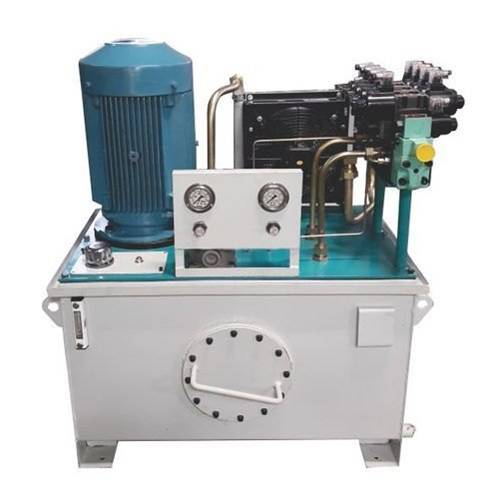

Our Hydraulic Power Packs are compact, high-performance units designed to provide reliable and consistent hydraulic power to a wide range of systems and equipment. We offer custom-built solutions to suit your flow, pressure, control, and application needs — whether for industrial automation, mobile machinery, or defense applications.
Technical Specifications
| Parameter | Range / Options | Remarks |
|---|---|---|
| Operating Pressure | 25 bar to 350 bar | Higher pressure options available |
| Flow Rate | 1 LPM to 200 LPM | Based on pump and motor configuration |
| Motor Power | 0.5 kW to 75 kW | AC (3-phase / single), DC, or servo |
| Reservoir Capacity | 5 to 500 liters | Custom tank design and construction |
| Pump Types | Gear, vane, axial piston, radial piston | Energy-efficient variants available |
| Mounting Type | Skid-mounted, vertical, horizontal, portable | Custom layouts as per space availability |
| Filtration | Suction, return line, pressure-side filtration | 3 to 25 micron filtering |
| Cooling Options | Air-cooled, water-cooled, fan-cooled | Optional heat exchangers |
| Control System | Manual, solenoid, remote control, PLC/HMI/SCADA | Custom-built control panels |
| Voltage Supply | 230V / 415V AC / 24V DC / Custom voltages | As per customer region |
